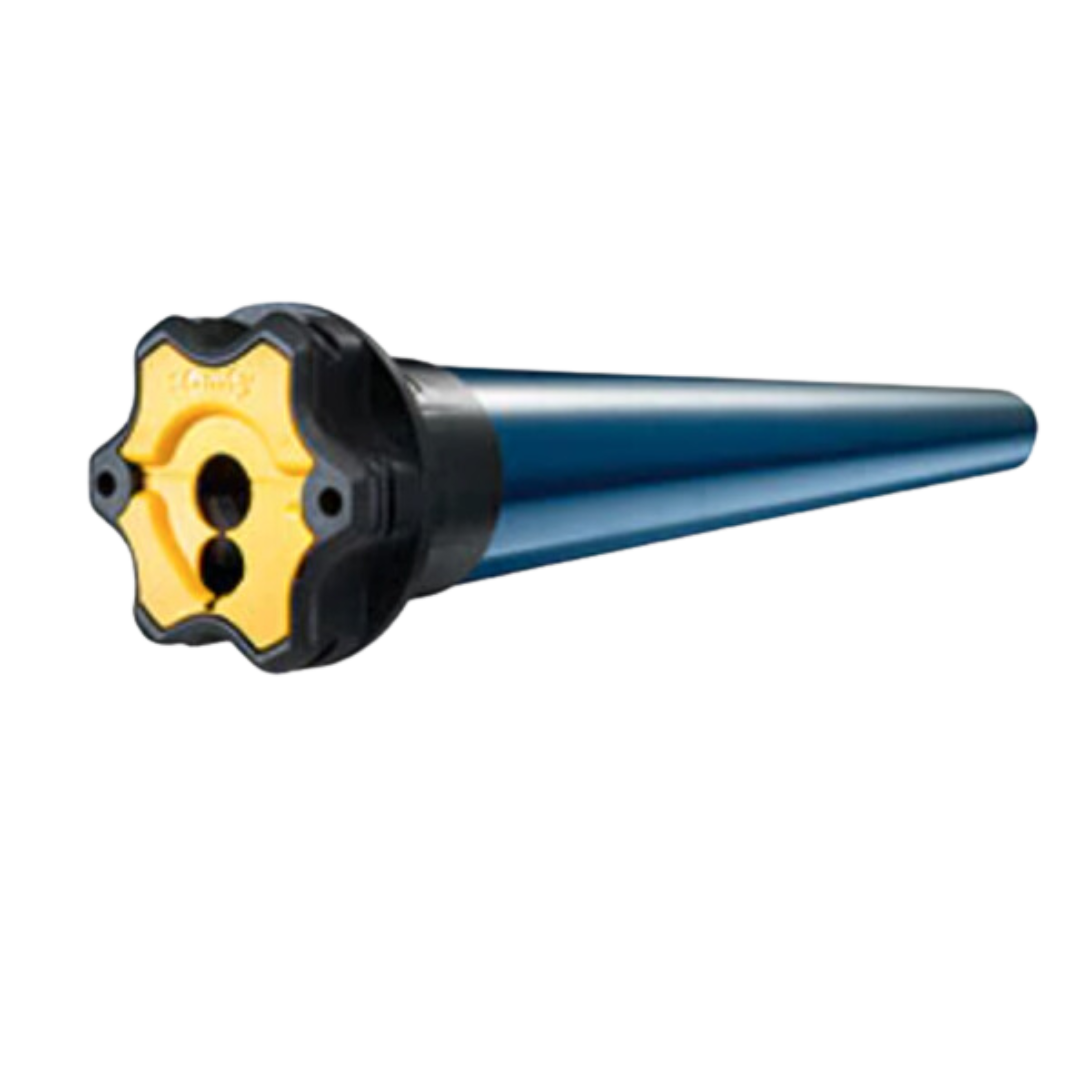

Sonnesse 50 & Ultra 50 Motor Systems
Motorized roller shades are available with AC or DC motors and are designed to comply with both U.S. and European electrical standards. These motors come in various sizes, speeds, and lift capacities to accommodate nearly any window shade. Fully encapsulated for enhanced shock resistance and quieter operation, the motors ensure reliable performance. The three key components of a roller shade motor include Limit Switches that control the top and bottom positions of the shade, a Brake that provides maximum strength and durability, and a Gear Mechanism engineered for versatile lift speed output.
Sonesse 50 Lines
Sonesse 50 RA
Technical Features
|
Voltage Supply |
120V AC, 60Hz |
|
Index Protection Rating |
504 – IP 31 (interior use) 506/510 – IP 44 (interior & exterior use) |
|
Limit Switch Type |
Rapid Adjustment RA |
|
Limit Switch Capacity |
46 Turns |
|
Temperature Working Range |
504: 32°F to 140°F – Interior use 506/510: -4°F to 158°F – Interior and exterior use |
|
Insulation Class |
Class 1 for 120V AC |
|
Wiring |
Do not parallel wire |
Specifications
|
|
504 |
506 |
510 |
|
Torque |
4 Nm |
6 Nm |
10 Nm |
|
Nominal Voltage |
120V/60Hz |
120V/60Hz |
120V/60Hz |
|
Rated Current |
.95A |
1.2AÂ |
1.67AÂ |
|
Speed |
32rpm |
32rpm |
32rpm |
|
Thermal Protection |
4 minutes |
4 minutes |
4 minutes |
|
Sound Level |
< 44 dBA |
< 44 dBA |
< 47 dBA |
|
L1 |
20.03 in (712 mm) |
 23.7 in (603mm) |
 23.7 in (603mm) |
|
L2 |
 27.6 in (701 mm) |
 23.2 in (590 mm) |
 23.2 in (590 mm) |
|
L3 |
SH 28.58 in (726 mm) RH 28.46 in (723 mm) |
SH 24.3 in (616 mm) RH 24.1 in (613 mm) |
SH 24.3 in (616 mm) RH 24.1 in (613 mm) |
|
Cable Length |
6.5ft (2m) | 6.5ft (2m) | 6.5ft (2m) |
Sonesse 50 RTS
Technical Features
|
Voltage Supply |
120V AC, 60Hz |
|
Index Protection Rating |
504 – IP 31 (interior use) 506/510 – IP 44 (interior & exterior use) |
|
Limit Switch Type |
Electronic RTS |
|
Limit Switch Capacity |
250 Turns |
|
Temperature Working Range |
504: 32°F to 140°F – Interior use 506/510: -4°F to 158°F – Interior and exterior use |
|
Insulation Class |
Class 1 for 120V AC |
|
Wiring |
Do not parallel wire |
|
Antenna |
Integrated into power cord. Power cord must be at least 12 inches and must not come in contact with metal. Â |
Specifications
|
|
504 |
506 |
510 |
|
Torque |
4 Nm |
6 Nm |
10 Nm |
|
Nominal Voltage |
120V/60Hz |
120V/60Hz |
120V/60Hz |
|
Rated Current |
.95A |
1.2AÂ |
1.67AÂ |
|
Speed |
32rpm |
32rpm |
32rpm |
|
Thermal Protection |
4 minutes |
4 minutes |
4 minutes |
|
Sound Level |
< 44 dBA |
< 44 dBA |
< 47 dBA |
|
L1 |
30.83 in (783 mm) |
 25.7 in (653mm) |
 25.7 in (653mm) |
|
L2 |
 30.31 in (770 mm) |
 25.2 in (640 mm) |
 25.2 in (640 mm) |
|
L3 |
SH 31.34 in (796 mm) RH 31.22 in (793 mm) |
SH 26.2 in (666 mm) RH 26.1 in (663 mm) |
SH 26.2 in (666 mm) RH 26.1 in (663 mm) |
|
Cable Length |
6.5ft (2m) | 6.5ft (2m) | 6.5ft (2m) |
|
Radio Frequency |
433.42 MHz | 433.42 MHz | 433.42 MHz |
Sonesse 50 RS485
Technical Features
|
Voltage Supply |
120V AC, 60Hz |
|
Index Protection Rating |
506/510 – IP 44 (interior & exterior use) |
|
Limit Switch Type |
Electronic |
|
Limit Switch Capacity |
300 Turns |
|
Temperature Working Range |
 -4°F to 158°F – Interior and exterior use |
|
Insulation Class |
Class 1 for 120V AC |
|
Wiring |
Do not parallel wire |
Specifications
|
|
506 |
510 |
|
Torque |
6 Nm |
10 Nm |
|
Nominal Voltage |
 120V/60Hz |
 120V/60Hz |
|
Rated Current |
1.2AÂ |
1.66AÂ |
|
Speed |
32rpm |
32rpm |
|
Thermal Protection |
4 minutes |
4 minutes |
|
Sound Level |
< 44 dBA |
< 47 dBA |
|
L1 |
 25.7 in (653mm) |
 25.7 in (653mm) |
|
L2 |
 25.2 in (640 mm) |
 25.2 in (640 mm) |
|
L3 |
26.2 in (666 mm) |
26.2 in (666 mm) |
|
SJTW Power Cable Length |
9.8ft (3m) | 9.8ft (3m) |
|
Data Cable (ordered seperately) |
Customizable | Customizable |
Sonesse Ultra 50 Lines
Sonesse Ultra 50 RA
Technical Features
|
Voltage Supply |
120V AC, 60Hz |
|
Index Protection Rating |
506 – IP 31 (interior use) |
|
Limit Switch Type |
Rapid Adjustment RA |
|
Limit Switch Capacity |
46 Turns |
|
Temperature Working Range |
506: 32°F to 140°F – Interior use |
|
Insulation Class |
Class 1 for 120V AC |
|
Wiring |
Do not parallel wire |
Specifications
|
Torque (minimum) |
6 Nm (0.4 Nm) |
|
Nominal Voltage |
120V/60Hz |
|
Rated Current |
.95A |
|
Speed |
24rpm |
|
Thermal Protection |
4 minutes |
|
Sound Level |
< 38 dBA |
|
L1 |
30.8 in (783 mm) |
|
L2 |
 30.3 in (769 mm) |
|
L3 |
SH 31.4 in (798 mm) RH 31.3 in (795 mm) |
|
SJTW Power Cable Length |
9.8ft (3m) |
Sonesse Ultra 50 RS485
Technical Features
|
Voltage Supply |
120V AC, 60Hz |
|
Index Protection Rating |
IP 31 (interior use) |
|
Limit Switch Type |
Electronic |
|
Limit Switch Capacity |
300 Turns |
|
Temperature Working Range |
32°F to 140°F – Interior use only |
|
Insulation Class |
Class 1 for 120V AC |
|
Wiring |
Parallel wiring allowed in accordance with NEC and local electrical codes. |
Specifications
|
Torque (minimum) |
6 Nm (0.4 Nm) |
|
Nominal Voltage |
120V/60Hz |
|
Rated Current |
.95A |
|
Speed |
24rpm |
|
Thermal Protection |
4 minutes |
|
Sound Level |
< 38 dBA |
|
L1 |
33.0 in (838 mm) |
|
L2 |
 32.5 in (825 mm) |
|
L3 |
33.6 in (853mm) |
|
SJTW Power Cable Length |
9.8ft (3m) |
|
Data Cable (ordered sperately) |
Customizable |
Sonesse Ultra 50 RTS
Technical Features
|
Voltage Supply |
120V AC, 60Hz |
|
Index Protection Rating |
IP 31 (interior use) |
|
Limit Switch Type |
Electronic RTS |
|
Limit Switch Capacity |
250 Turns |
|
Temperature Working Range |
32°F to 140°F – Interior use only |
|
Insulation Class |
Class 1 for 120V AC |
|
Wiring |
Parallel wiring allowed in accordance with NEC and local electrical codes. |
|
Antenna |
Integrated into power cord. Power cord must be at least 12 inches and must not come in contact with metal. |
Specifications
|
Torque (minimum) |
6 Nm (0.4 Nm) |
|
Nominal Voltage |
120V/60Hz |
|
Rated Current |
.95A |
|
Speed |
24rpm |
|
Thermal Protection |
4 minutes |
|
Sound Level |
< 38 dBA |
|
L1 |
31.8 in (808 mm) |
|
L2 |
 31.3 in (795 mm) |
|
L3 |
SH 32.4 in (823mm) RH 32.3 in (820mm) |
|
SJTW Power Cable Length |
9.8ft (3m) |
|
Radio Frequency |
433.42 MHz |
